Inground Lift – SL210-MP8 | Smartlift Drive Over Pad Lift | Shockwave™ Available

SL210-MP8

Compacity: 8,000 lbs.

Moveable, easy sliding, low profile MP8 lift pads allow for quick and accurate vehicle spotting and lifting with no center obstructions. Pads extend and retract into the super structure of the lift. This gives your technicians plenty of area to work with spotting the vehicle. This lift comes with two (2) composite polymer rubber adapter pad kits. Pads are placed on platforms to increase height for vehicle spotting.

Available with Shockwave™ (SL210-MP8SW) or without (SL210-MP8)

Contact A Distributor Download Brochure Product Video

Contact a Rotary Distributor








    Features Specifications Related Products

    Features

    Movable lift pads and low profile make lifting easy.

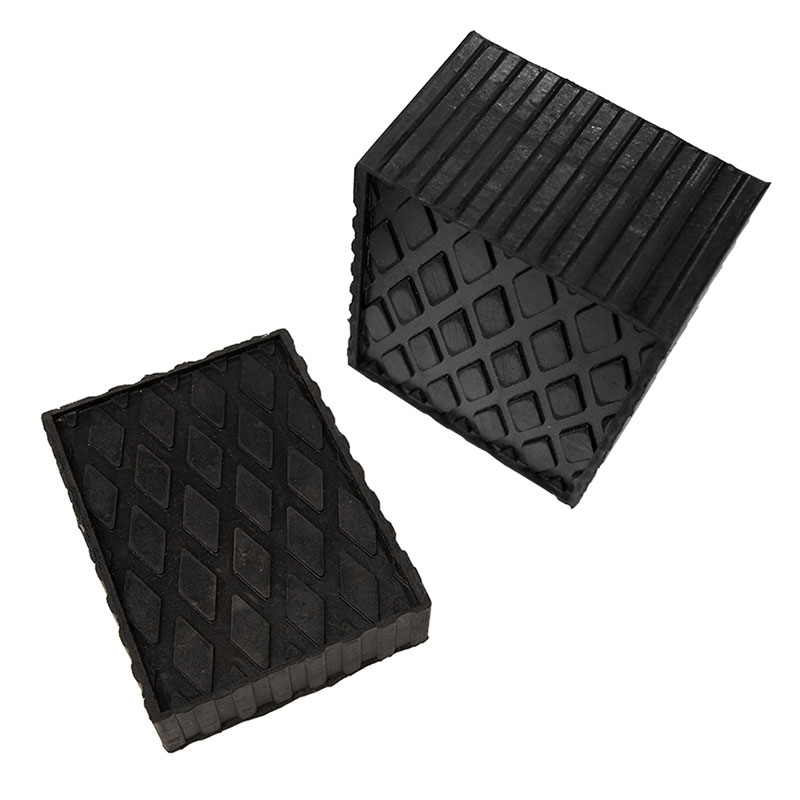

    Includes a set of four 1-1/2“ pad adapters and a set of four 3“ pad adapters.

    xclusive locking system which features a patented polymer and stainless air cylinder for high performance and longevity.

    Specifications
    Specification SL210-MP8 SL210-MP8 with Shockwave™
    Adapters Drive-Over Lift Pads Drive-Over Lift Pads
    Rise* 73 3/8″ (1864mm) 73 3/8″ (1864mm)
    Width Overall 78 1/4″ (1987mm) 78 1/4″ (1987mm)
    Width Between Supports 36 3/4″ (934mm) 36 3/4″ (934mm)
    Reach (pad min.) 29 3/4″ (756mm) 29 3/4″ (756mm)
    Reach (pad max) 74 3/4″ (1898mm) 74 3/4″ (1898mm)
    Width of Puck-up Area 20″ (508mm) 20″ (508mm)
    Min. Adapter Height 2 3/8″ (60mm) 2 3/8″ (60mm)
    Lifting Capacity (per pad) 2,000 lbs. (907kg) 2,000 lbs. (907kg)
    Guide Plunger Diameter 8 1/2″ (216mm) 8 1/2″ (216mm)
    Voltage Single Phase 208v – 230v 110v
    Time of Full Rise/Decent 53 secs. / 24 secs. 25 secs. / 19 secs.
    Min. Bay Size 11’x24′ 11’x24′
