Scissor Lift – RLP77 | Low Profile | Double Section

RLP77

Capacity: 7,700 lbs.

The RLP77’s sleek, low-profile design works really well in shops with small spaces. It provides a flawless platform for quick service or fast repair work. And the Synchrodrive Equalization system maintains platform equalization while you lift and lower—something you won’t find in the competition.

  • Low-profile design with integrated folding ramps
  • Full diamond plate powder-coated platforms
  • Composite high-strength steel construction
  • Intuitive console controls
  • Flush and surface-mount options
  • ALI Gold Certified

Contact A Distributor Download Brochure Product Video

Contact a Rotary Distributor








    Features Specifications Related Products

    Features

    Synchrodrive Equalization System

    The hydraulic system that maintains platform equalization during lift and lower cycles also prevent out-of-level situations in the event of an obstruction in the scissor lift. There are no electronics or sensors that can fail, and there are fewer moving parts for easier maintenance.

    Ramp ends fold 65º down and away in order to provide more access for wheel and brake service.

    13 inch long underhung ramps with rollers maximize rubber block footprint, increasing reliability, and protect unlevel floor installations.

    The RLP77’s composite high-strength steel construction and powder-coated surface ensure a long life for your lift.

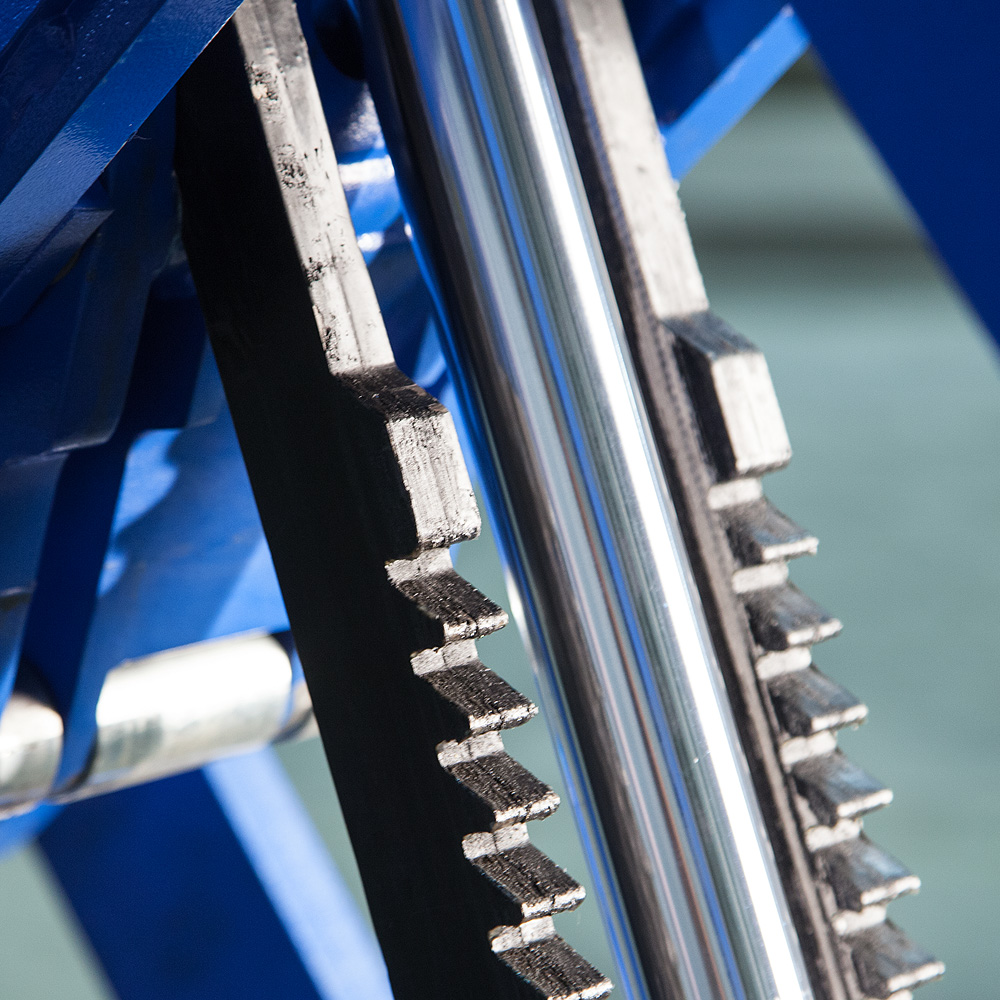

    26 Lock Positions featuring our negative rake tooth design. Locks ratchet over each other then interlock when lift it lowered to those locks.

    Easily access slider blocks for regular maintenance, see instruction manual for more details.

    Adjustable lift dampener eliminates end of downward travel sudden impacts. Lifts not equipped with this slam into the floor causing damage to shop/lift and create an unwanted loud noise.

    Specifications
    Specification RLP77
    Capacity 7,700 LBS.
    Rise 78-5/8″
    Lowered Height 4-1/8″
    Overall Length 85″
    Overall Width 85″
    Runway Width 24-3/4″
    Width Between Platforms 23-5/8″
    Platform Length 59″
    Motor/Voltage Single Phase – 4 Hp, 60Hz, 230V
    Compressed Air Connection 85-110 psi
    Time of Full Rise 39 seconds
